Locked objects

With this panel, the configuration via the video object explorer can be locked for each video object that is listed here.

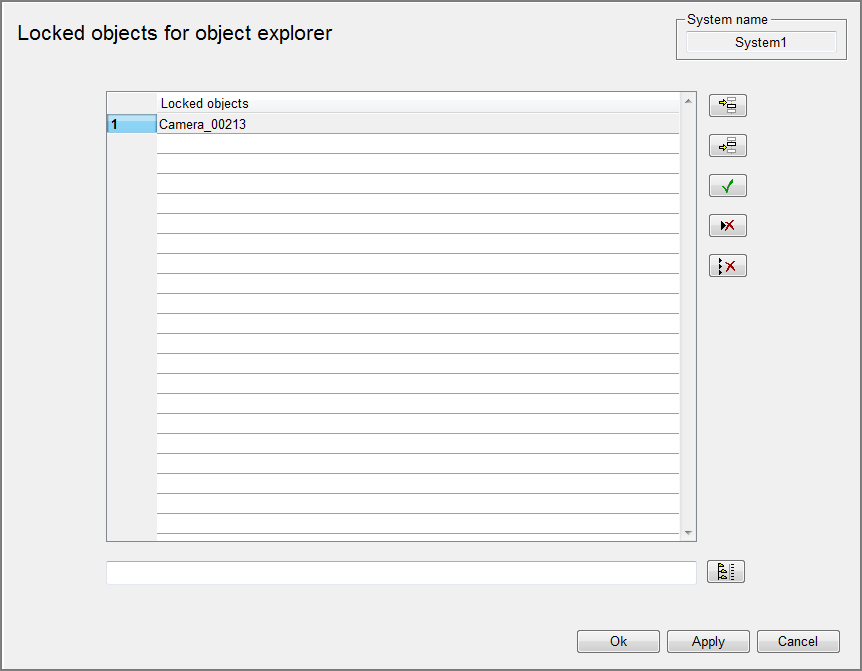

Figure 1. Locked objects

This function can be used in order to ensure that special configurations are protected from unintentional changes. If an object is inserted into this list, the Apply and Ok button in the video object explorer of the particular object are replaced by a warning.

Figure 2. Configuration is locked

The function can be bypassed via Common settings - internal settings in the system settings by selecting the function Allow configuration of locked objects (Bit 5) (see also Internal settings). There is still a warning in the video object explorer however the configuration is possible.

Figure 3. Warning

There is no checking if the object which is in the list is existing in the system. If the video object is locked for the configuration, the lock is active for all systems.

Buttons

adds a new entry above the marked row.

adds a new entry beneath the marked row.

applies the value of the text field beneath the table for the marked row.

deletes the selected row.

deletes all entries.

opens the data point selector.
