Remote driver project

Remote driver project: The executable server project can be selected in the New project panel (see figure above). Click on the push button Next, in the coming General settings panel you can enter the project name as well as select a path to save the new project by clicking on the push button (please refer to Figure General settings below). The language selection is disabled, since the languages defined in the server project are automatically used for the remote driver project. Click on the push button Next to confirm your settings. In the next coming Settings of the remote driver project panel (refer to Figure Settings of the remote driver project below) the server name should be entered. In the drop-down list you can select a corresponding driver. The manager number can be either selected by clicking on the arrow upwards / downwards or entered directly between 1 and 254.

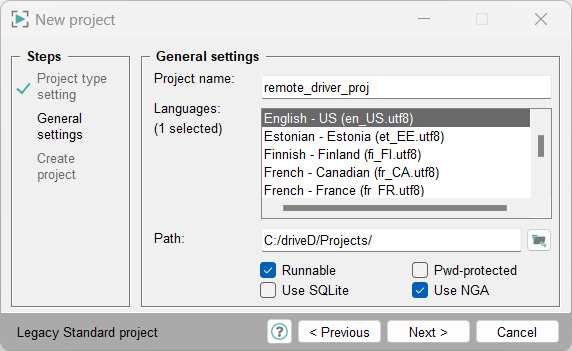

Figure 1. General settings

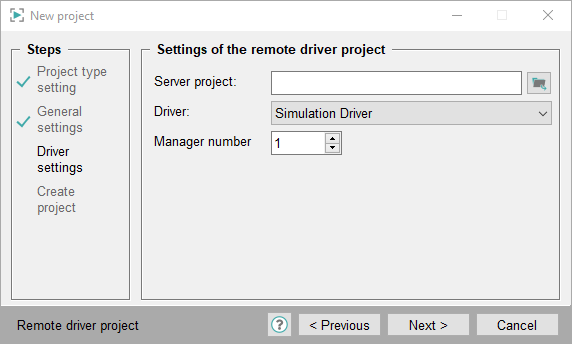

Figure 2. Settings of the remote driver project
CAUTION: For remote projects, the WinCC OA version used on server and client must be the same.
Note: Note that you have to specify the server name for the remote server project correctly since the correctness of the server name is not checked. A check is executed whether the server name was specified (is not empty).
