"setItemFillColor"
Used to define the fill color of an item.
Synopsis
void shape.setItemFillColor(int series, int idx, string color)
Parameters
| Parameter | Description |
|---|---|
| series | number of the series |
| idx | index of the item, starting at 0 |
| color | the color, that is set |
Description
Used to define the fill color of an item. This function is only possible in the charttypes Donut and DonutBars. All other charttypes use "seriesFillColor".
Example

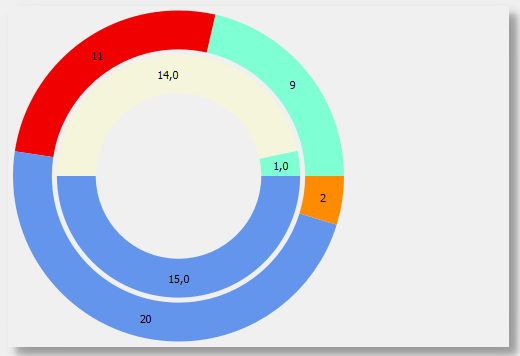

In this example the fill color of the element with the value 11 from the first series was changed to red.
main()
{
dyn_float one;
one[1] = 9;
one[2] = 11;
one[3] = 20;
one[4] = 2;
this.addSeries(one);
this.setSeriesFillColor(0, "{180,255,170}");
dyn_float two;
two[1] = 1;
two[2] = 14;
two[3] = 15;
this.addSeries(two);
this.setSeriesFillColor(1, "{52,225,255}");
this.setSeriesName(1, "Blue");
this.setSeriesName(0, "Green");
this.setItemFillColor(0, 1, "{241,0,0}");
}
