"addRange"

Synopsis

shape.addRange(int day, time start, time end, [, string color = "red",[string text = "", [string data = "", [int idx ]]]]);

Parameters

Description

Adds a time bar to the scheduler ewo.

Example

In the following example a blue time bar on the 27th of March 2007 with the start time 15:10 and end time 16:12 is added to the scheduler ewo. The texts "Test"; and data "Data" are set for the bar. The index of the bar is 1.

main()
{
  time t1, t2;
  t1= makeTime(2007,03,27,15,10);
  t2= makeTime(2007,03,27,16,12);
  this.addRange(1,t1,t2,"blue","Test","Data",1);
}

If you use a period that is longer than one day, you have to add the times for the individual days separately.

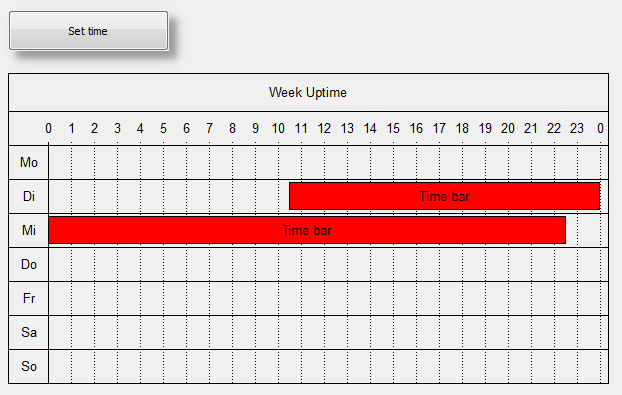

In the following example two separate time bars are added to the scheduler ewo. The code main() returns the times.

main()
{
  time barStart = getCurrentTime() - (3600);
  // Time 1 hour ago time barEnd = barStart + (3600 * 36);
  // 1,5 Day long time range mapping userData = makeMapping("GENERATED_AT", getCurrentTime(), "USER", getUserName());
  bool acces = addRangeInWeek(getShape("Uptime"), barStart, barEnd, "red", makeMapping("TEXT", "my hello world range","DATA", userData));
}
// !!! shape scheduler ewo 'Uptime' must exist

The following code adds two bars to the scheduler ewo.

//---------------------------------------------------------------------------------------------------------------------------------------
/**
function adds time-array to the scheduler widget
works like property 'addRange' but this function sets ranges for two days
@param sh sheduler ewo shape
@param tStart start time
@param tEndt end time
@param color color of array
@param opts options [optional]
opts.TEXT text showed in time array
opts.DATA user defined data, should be a string. Arrays or mappings are converted to JSON string
opts.IDX index for the time array
@return succes TRUE, else FALSE
*/

bool addRangeInWeek(shape sh, time tStart, time tEndt, string color, mapping opts = makeMapping())
{
  const int _START_DAY_IDX = weekDay(tStart);
  const int _END_DAY_IDX = weekDay(tEndt);
  const string _TEXT = mappingHasKey(opts, "TEXT") ? opts["TEXT"] : ""; // optional
  const int _IDX = mappingHasKey(opts, "IDX") ? opts["IDX"] : 0; // optional

  if ( (_START_DAY_IDX <= 0) ||//Check if the period (start time and end time are OK)
  (_END_DAY_IDX <= 0) ||
  (_END_DAY_IDX > 7) ||
  (_START_DAY_IDX > _END_DAY_IDX) ||
  (_IDX < 0) )
  {
    DebugTN("invalid time range", "tStart", tStart, "tEndt", tEndt, "_START_DAY_IDX", _START_DAY_IDX, "_END_DAY_IDX", _END_DAY_IDX);
    return FALSE;
  }

  anytype data = mappingHasKey(opts, "DATA") ? opts["DATA"] : ""; // optional
  string sData;

  // convert data value to string. WinCC OA variables are converted to JSON strings
  if ( getType(data) == MAPPING_VAR || strpos(getTypeName(data), "dyn") == 0 )
    sData = jsonEncode(data);
  else
    sData = data;

  time tNewEnd;

  for (int i = _START_DAY_IDX; i <= _END_DAY_IDX; i++)
  {
    tNewEnd = getLastSecondInDay(tStart);
    if ( tNewEnd > tEndt )
      tNewEnd = tEndt;

    string c = color;
    sh.addRange(i, tStart, tNewEnd, c, _TEXT, sData, _IDX); //Add the time to the schedule
    tStart = tNewEnd + 1;
  }
  return TRUE;
 }
//---------------------------------------------------------------------------------------------------------------------------------------
/**
function returns the last second of the day
@param t time
@return the last second of the specified day
*/
time getLastSecondInDay(time t)
{
  return makeTime(year(t), month(t), day(t), 23, 59, 59);
}

Assignment

Scheduler.ewo
