"setIcon"

Sets an icon for a line in the tree widget.

Synopsis

shape.setIcon(string id, int column, string fileName);

Parameters

Parameter Description
shape Name of the object
Id The ID of the item
column The number of the column
fileName Name of the file (image) that should be shown. Specify the name of the image relative to the pictures directory e.g. "wizard.png" or "Indicators/image1.gif" or the absolute path. The image will be searched for in all proj_path/wincc_oa_path levels. See chapter Graphical design of panels for information on the supported graphic formats.

Description

Sets a widget's icon.

Example

Following example adds dummy entries to an empty tree widget and adds for comparison icons using the setIcon as well as the setIconAdjusted function.

main()
{
  //Add a column and dummy entries to the tree
  TREE1.addColumn("Entries");
  TREE1.appendItem("","ADJ","Adjusted Icon");
  TREE1.appendItem("","REG","Regular Icon");
  TREE1.appendItem("","NO","No Icon");
  //Set the icons
  TREE1.setIconAdjusted("ADJ",0,"login.png");
  TREE1.setIcon("REG",0,"login.png");
}

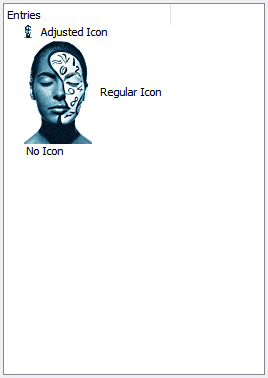

Abbildung 1. Comparison setIcon/setIconAdjusted

Assignment

Tree widget
