"SetDpFilter"

Sets a data point filter for the DpTreeView.

Synopsis

setValue(string shape, "SetDpFilter", string filter);

getValue(string shape, "SetDpFilter", string &filter);

shape.SetDpFilter(string filter);

Parameter


Parameter	Description
shape	Name of the object
filter	Data point name or data point pattern

Description

Sets a data point filter for the DpTreeView. Use the wildcard "*" to generalize the filter.

Example

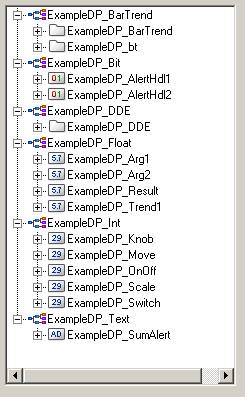

In the following example only data points whose names contain "*ample*" are displayed.

main()
{
  DP_TREE1.SetDpFilter("*ample*");
}

Assignment

DpTreeView
