Open the License Information panel via the License
Information button
in the Project Administration panel or the WinCC OAconsole.
Note: Only local containers can be selected via the
License Information panel to activate, deactivate and
update licenses. License servers cannot be used.
The License Information - Overview > License Container panel shows the following license information:
the container number as well as the license options that are
available in this Container. You can select a container from the
Container Serial Number combo box. The license options
for the chosen container are shown.
Use the + button to create a new license container. The licenses
can be transferred to the new container via the Operations tab -
see chapter Operations.
Note: When using file-based operations or in general when using
multiple containers, we recommend keeping the container number for the file name.
This is meaningful in order to differentiate between multiple containers.
License Information - License
On the License tab, the license options for the chosen container
are shown.

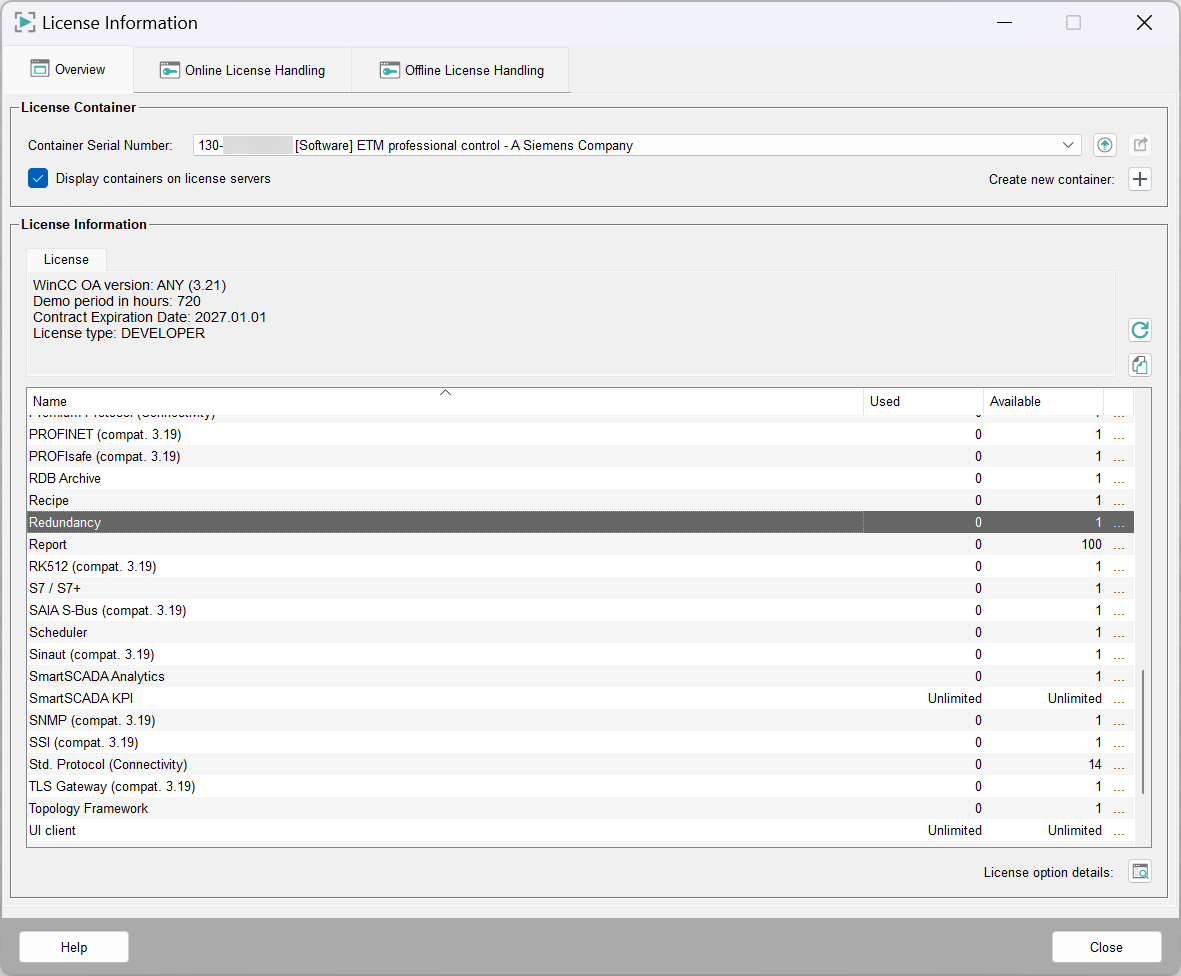

Figure 1. Panel "Licensing Information - Overview"
Click on the ... of a license option or the License option
details button to open the Product Items panel that displays details on the selected license
option.
In the panel Product Items the following details
for a license option are shown:
How many license are currently available
how many of them are being used.
When does the license expire.
The license quantity that was purchased.
Which WinCC OA version is being used.
Depending on the license option, further information
Expired license options are displayed in red.
Figure 2. Product Items - Event Manager
For the license option "Custom
keyword" , an own keyword, also the keyword is shown
in the panel.
For more information on the available number of unlimited UIs, see
chapter Operating Conditions
License Information - Hardware Code
The hardware code is the code for this computer (localhost).
Figure 3. License Information - Hardware Code
