"curveLegendUnit", "curveLegendUnitX"

Defines the curve unit in legend. The function "curveLegendUnitX"; sets the unit in the legend for the XY trend curve of the X part.

Synopsis

setValue(string shape, "curveLegendUnit", string Name, string Unit);

getValue(string shape, "curveLegendUnit", string Name, string &Unit);

shape.curveLegendUnit (string Name, string Unit);

setValue(string shape, "curveLegendUnitX", string Name, string Unit);

getValue(string shape, "curveLegendUnitX", string Name, string &Unit);

shape.curveLegendUnitX(string Name, string Unit);

Parameters

Parameter Description
shape Name of the object
Name Name of a curve
Unit Curve unit in a legend

Description

This attribute describes the unit label of the curve "Name" in the curve legend.

Example

main()
{
  // Unit
  TREND1.curveLegendUnit("curve1", "Km/h");
}

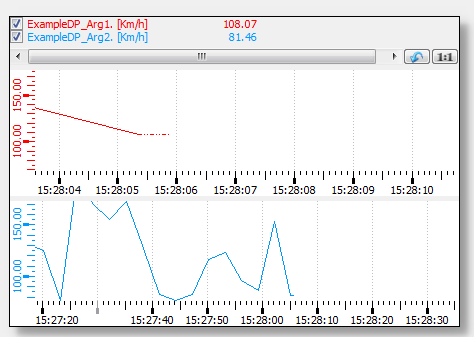

Figure 1. The Curve Unit is shown in the Curve Legend

When assigning legend properties ("curveLegendName", "curveLegendUnit", "curveLegendVisibility") in trends with several areas by means of a control script, you have to adhere to a fixed order. At first declare the properties for the curves of the first area, then declare the properties for the curves of the second area and so on.

Assignment

Trend
