"curveScaleVisibility", "curveScaleVisibilityX"

This is used to show or hide the scale of the trend during runtime. "curveScaleVisibilityX" is valid for the XY trend curve of the X part.

Synopsis

setValue(string shape, "curveScaleVisibility", string Name, bool on);

getValue(string shape, "curveScaleVisibility", string Name, bool &on);

shape.curveScaleVisibility(string Name) = bool on;

Parameters

Parameter Description
shape Name of the object (for example, Trend1)
Name Name of the curve whose scale (for example c1) is to be shown or hidden
on Switch for scale (FALSE off, TRUE on)

Description

This function shows (TRUE) or hides (FALSE) the Y-axis scale for a given trend display curve. By default on==TRUE.

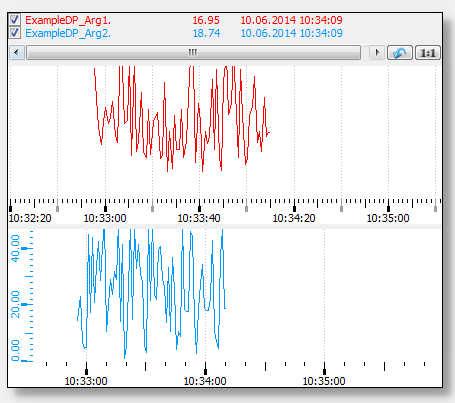

Figure 1. The Y-axis of the Curve for ExampleDP_Arg1 was hidden

Assignment

Trend
