State details
This chapter acts as a guide to the "state details" tab. The tab provides details on the respective connection state.

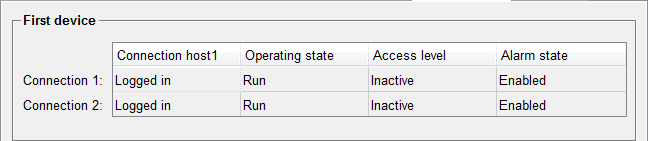

Connection states - details first device
Connection host 1
Shows the connection state of the first and, if configured the redundant connection.
- Logged out
- Logging in
- Logged in
- Logging out
Operating state
Shows the current operating state of the PLC.
- Run
- Stop
- Startup
Legitimation level
Shows the legitimation level of the respective connection. Depending on the access level a password may be necessary. The connection is only legitimated if the password is given (see Advanced settings tab). Otherwise, access to data is denied.
- Invalid
- Failsafe
- Full
- Read/Write
- Read
- Inactive
Security
This shows the security set for the connection. This is an enum value, and can have
the following values:
- 0..None
- 2..CSI
- 4..TLS
