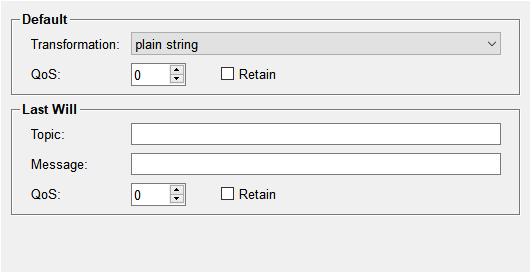

Default / Last Will

Common settings for the MQTT messages as well as Last Will settings.

Default

General settings used for the communication with the MQTT broker.

Transformation: The transformation that should be used for the transferred values. Following transformation types are available:
QoS: Quality of Service level for the published messages.
Retain: The checkbox defines if the transferred value should be retained in case of a connection loss.

Last Will

The Last Will settings allow to define a message, which should be published by the broker in the case the connection between publisher and broker is lost.

Topic: The topic which should be set for the Last Will message.
Message: The message text that should be contained within the Last Will message.
QoS: The QoS for the Last Will message. For more information on Quality of Service, see Quality of Service.
Retain: The checkbox defines if the transferred value should be retained in case of a connection loss.
