Export Server

To export video data from the video server to another host you have to enable the export service for the required host. After that you can select the host for the export of data.

The export can be triggered via the workstation of the respective host or the export function (System management > Video > Export).

Creating a new Export Server

Open the context menu with a right mouse click on Export Server and select create new object. The following window is opened:

Figure 1. Creating a workstation

After entering the name the configuration panel will be opened.

Configuration

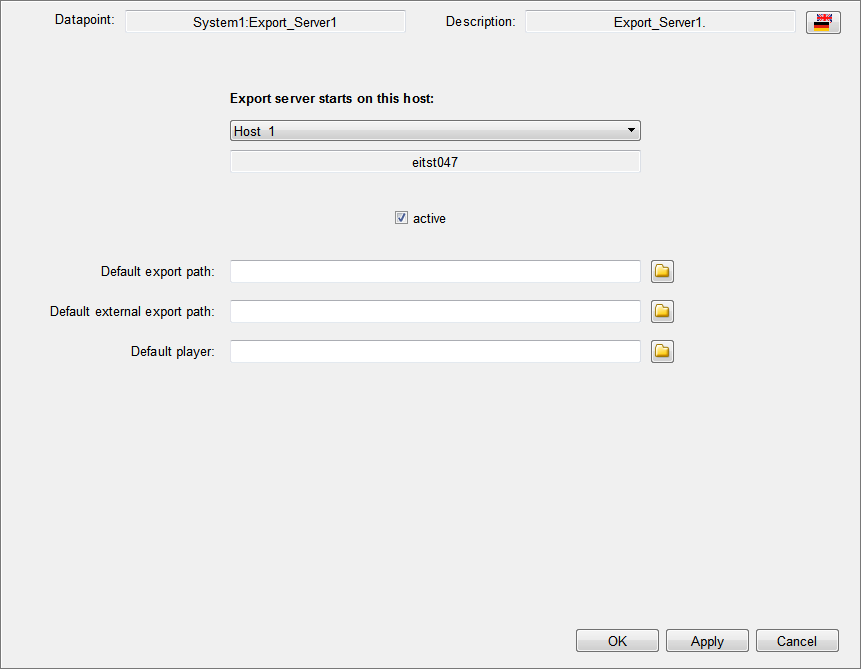

Figure 2. Workstation configuration
Export server starts on this host

Define the host on which the export server shall be running. You can select either one of the created hosts where export service is enabled or the video server.

active

Activates the export service.

  • AccVimaccConfig

  • AccVimaccRoot

  • AccVimaccExport

In order to export video data on a host, a vimacc client installation with the following running services must be available on the requested host:

Default export path

Local path on the selected host. This path and its sub directories can be selected as export target in the export explorer.

Default external export path

Local path on the selected host. It is possible to move exports to this directory via the file overview panel

Default player

Local path on the selected host. In case that the starting file of the player is not located in C:/imacc/data/forExport/Start/VideoPlayer.exe the corresponding path must be specified here. Otherwise the player cannot be started via the file overview panel.

Overview

The settings for a export server can be displayed by a left mouse click on the appropriate object in the video object explorer.

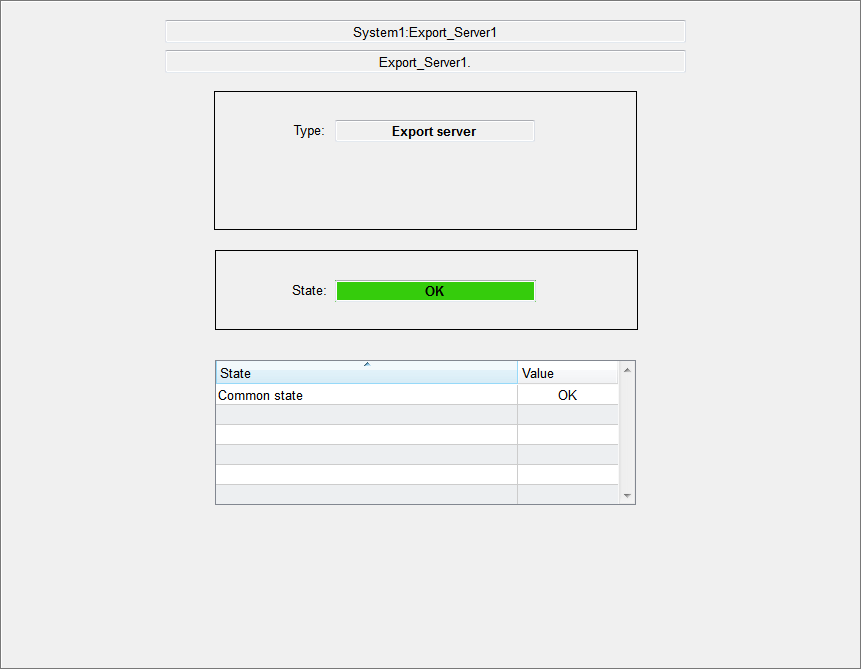

Figure 3. Workstation overview
Type

Is given by the system and is always Export server.

State

Current state of the export server.
