"colorTolLow"

Defines the bar color for values that are below the lower tolerance value.

Synopsis

setValue(string shape, "colorTolLow", string color);

getValue(string shape, "colorTolLow", string &color);

shape.colorTolLow(string color);

Parameters

Parameter Description
shape Name of the object
color Color string

Description

This attribute can be used to define the color for values that are below the lower tolerance limit.

Example

see "refOrigin"

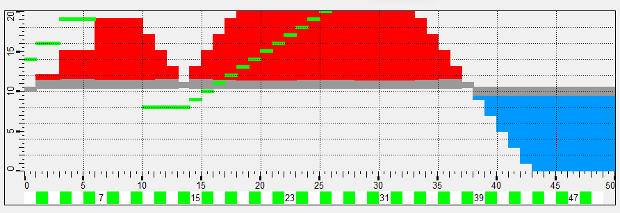

Figure 1. The Color of Values that fall below the lower Tolerance Limit was set to blue

Assignment

Bar trend
