"widthTop" - Element array

Width of the bar element above the average value.

Synopsis

setValue(string shape, "widthTop", float value);

getValue(string shape, "widthTop", float &value);

shape.widthTop(float value);

Parameters

Parameter Description
shape Name of the object
value Width of the bar element

Description

This attribute defines the width of the bar element above the average value section.

Example

see "data" - Element array

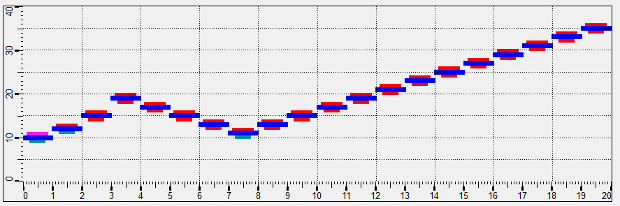

Figure 1. The Width of the Bar Element above the Average Value Section was set to 0,7

Assignment

Bar trend
