"xGridLineStyle", "yGridLineStyle"

The functions "xGridLineStyle" and "yGridLineStyle" set the style of the grid lines for the X and Y axes.

Synopsis

setValue(string shape, "xGridLineStyle", string style);

getValue(string shape, "xGridLineStyle", string &style);

shape.xGridLineStyle(string style);

Parameters

Parameter Description
shape Name of the object
style The style of the grid line, for example, "[solid,oneColor,JoinMiter,CapNotLast,4]". See chapter Line-type string for more information.

Description

The functions "xGridLineStyle" and "yGridLineStyle" set the style of the grid lines for the X and Y axes.

Example

The following example sets the style of the grid lines to "[solid,oneColor,JoinMiter,CapButt,0]".

main(bool enter)
{
  BAR_TREND1.xGridLineStyle("[solid,oneColor,JoinMiter,CapButt,0]");
  BAR_TREND1.yGridLineStyle("[solid,oneColor,JoinMiter,CapButt,0]");
}

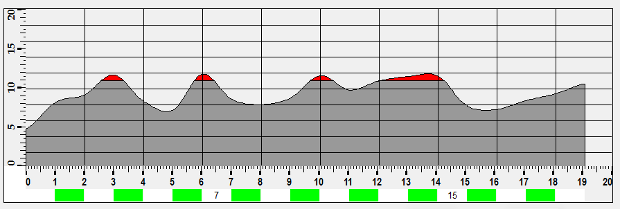

Figure 1. The Style of the Grid Line was set to solid,oneColor,JoinMiter,CapButt,0

Assignment

Bar trend
