"xFont", "yFont"

The "xFont" and "yFont" functions set the fonts for the X and Y axes.

Synopsis

setValue(string shape, "xFont", string font);

getValue(string shape, "xFont", string &font);

shape.xFont(string font);

Parameters

Parameter Description
shape Name of the object
font The font, for example, "Arial Narrow,-1,11,5,50,0,0,0,0,0". You can find the desired font with the function fontSelector().

Description

The "xFont" and "yFont" functions set the fonts for the X and Y axes.

Example

The following example sets the font Arial Narrow for the X axis and the font Book Antiqua for the Y axis.

main(bool enter)
{
  BAR_TREND1.xFont("Arial Narrow,-1,11,5,50,0,0,0,0,0");
  BAR_TREND1.yFont("Book Antiqua,-1,11,5,50,0,0,0,0,0");
}

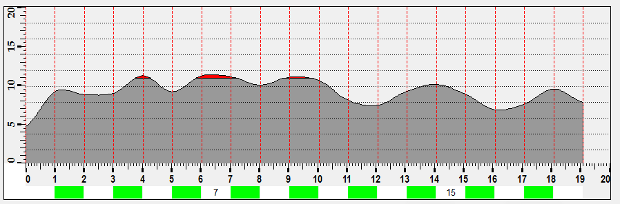

Figure 1. The Font Arial Narrow was set for the X axis and the font Book Antiqua for the Y axis

Assignment

Bar trend
