"xGridLineColor", "yGridLineColor"

The functions "xGridLineColor" and "yGridLineColor" set the colors of grid lines for X and Y axes.

Synopsis

setValue(string shape, "xGridLineColor", string color);

getValue(string shape, "xGridLineColor", string &color);

shape.xGridLineColor(string color);

Parameters

Parameter Description
shape Name of the object
color The color, for example, "Red" or "Green"

Description

The functions "xGridLineColor" and "yGridLineColor" set the colors of grid lines for X and Y axes.

Example

In the following example, the color of the grid line for the x axis will be set to red and the color of the grid line for the y axis will be set to green.

main(bool enter)
{
  BAR_TREND1.xGridLineColor("Red");
  BAR_TREND1.yGridLineColor("Green");
}

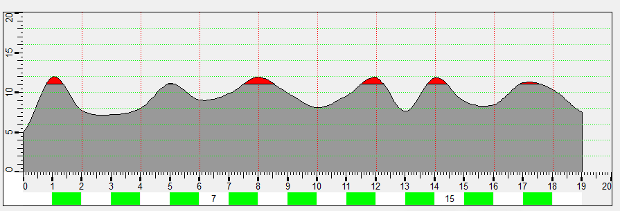

Figure 1. The Color of the Grid Line for the X Axis was set to red and the Color of the Grid Line for the Y Axis was set to green

Assignment

Bar trend
