"setSeriesAsLine"
Used in the charttypes Bars, StackedBars and Bubbles to show the given series as a polyline, instead of bubbles or bars.
Synopsis
void shape.setSeriesAsLine(int series, bool asLine);
Parameters
| Parameter | Description |
|---|---|
| series | series |
| asLine |
TRUE = shown as line FALSE = not shown as line |
Description
Used in the charttypes Bars, StackedBars and Bubbles to show the given series as a polyline, instead of bubbles or bars. When showing a polygon, the defined markerType for this series is shown at each vertex.
Example

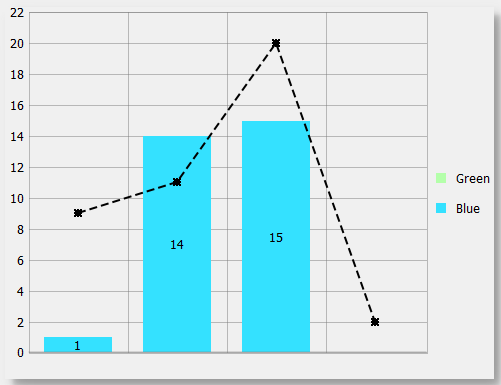

In this example the series "Green" is shown as a dashed line. Each vertex is marked by the marker "star".
main()
{
dyn_float one;
one[1] = 9;
one[2] = 11;
one[3] = 20;
one[4] = 2;
this.addSeries(one);
this.setSeriesFillColor(0, "{180,255,170}");
dyn_float two;
two[1] = 1;
two[2] = 14;
two[3] = 15;
this.addSeries(two);
this.setSeriesFillColor(1, "{52,225,255}");
this.setSeriesName(1, "Blue");
this.setSeriesName(0, "Green");
this.setSeriesLineType(0, "[dashed,oneColor,JoinMiter,CapButt,2]");
this.setSeriesAsLine(0, TRUE);
this.setSeriesMarkerType(0, "Star");
}
