"valueTextPosition"

The function defines, where the valuetext should be displayed.

Synopsis

void shape.valueTextPosition(string position);

Parameters

Parameter Description
position "Bottom", "Center", "Top", "Outside"

Description

"Bottom", "Center", "Top", "Outside" defines, where the valuetext should be displayed. This property is only used in the barcharts. "Outside" means, that the text is displayed outside the bars, all other texts are shown relative to the inner area of the bar. In horizontal orientation, "Bottom" means the left end and "Top" means the right end of the bar.

Example

In this example, the valuetext is shown "Top", so at the right end of the horizontal bars.

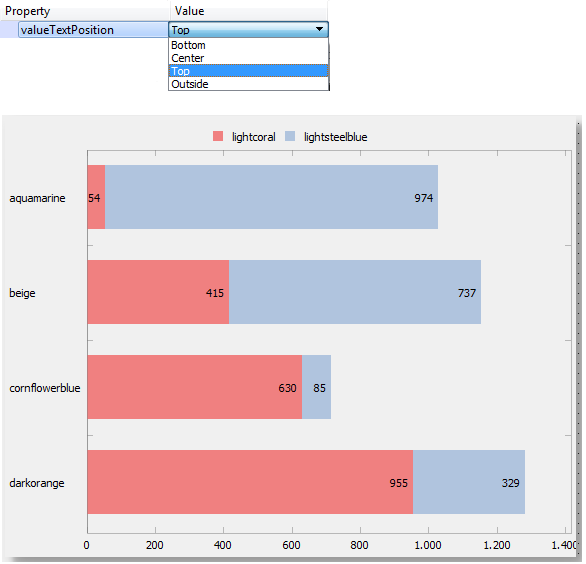

Figure 1. Barchart with horizontal orientation of the bars and valuetext at the top-position

Assignment

Chart.ewo
