"setSeriesVisible"

Defines, if the given series is visible or invisible.

Synopsis

void shape.setSeriesVisible(int series, bool visible)

Parameters

Parameter Description
series number of the series
visible

TRUE = visible

FALSE = invisible

Description

Defines if the given series is visible or invisible.

Example

In the following example the series with the name "green" was set invisible. In the fist picture the two series are shown, in the second picture it is seen, that one series was set invisible.

main()
{
   dyn_float one;
   one[1] = 9;
   one[2] = 11;
   one[3] = 20;
   one[4] = 2;
   this.addSeries(one);
   this.setSeriesFillColor(0, "{180,255,170}");
   dyn_float two;
   two[1] = 1;
   two[2] = 14;
   two[3] = 15;
   this.addSeries(two);
   this.setSeriesFillColor(1, "{52,225,255}");
   this.setSeriesName(1, "Blue");
   this.setSeriesName(0, "Green");
   this.setSeriesVisible(0, FALSE);
}

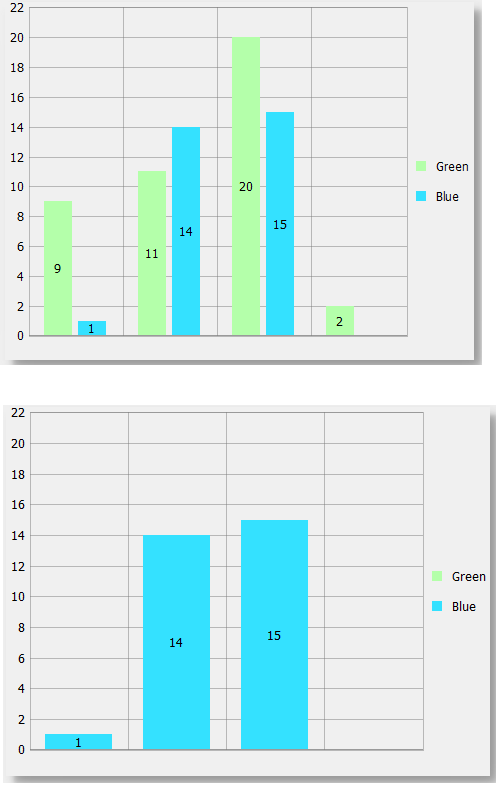

Figure 1. First picture: both series are visible; second picture: the series "Green" is set invisible

Assignment

Chart.ewo
