"stopAngle"

This function is similar to "startAngle", but is only used in the charttypes Donut and DonutBars.

Synopsis

void shape.stopAngle(float stopAngle);

Parameters

Parameter Description
stopAngle stop angle; from 0 to 360 degrees

Description

Similar to "startAngle" but defines the maximum angle for the display. It is only used in the charttypes Donut and DonutBars.

Example

In the following example the start angle was set to 50 degrees and the stop angle to 270 degrees

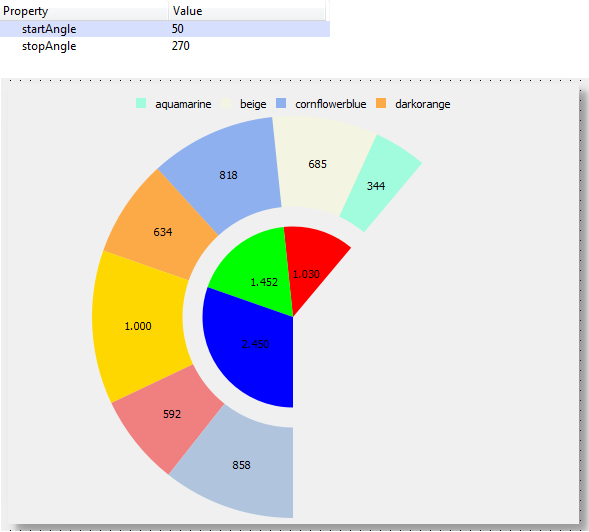

Figure 1. Donut-chart with start angle at 50 degrees and stop angle at 270 degrees

Assignment

Chart.ewo
