"connection" - Curve

Defines the display format for a curve.

Synopsis

setValue(string shape, "connection", int conntyp);

getValue(string shape, "connection", int &conntyp);

shape.connection(int conntyp);

Parameters


Parameter	Description
shape	Name of the object
conntyp	The valid constants are: BAR_STEPS BAR_LINEAR BAR_SPLINE

Description

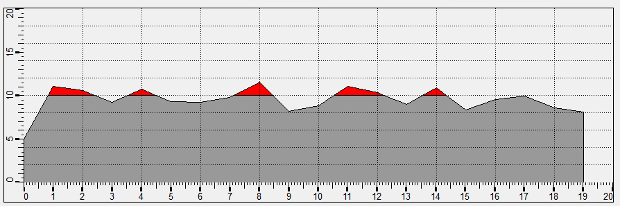

This attribute defines the display format for a curve. The "conntyp" parameter is used to select either a stepped curve, linear curve or spline curve by means of a constant.

Example

see "data" - Curve

Assignment

Bar trend
