dpConnect()

main()
{
  dyn_errClass err;
  int i;
  i = dpConnect("add", "System1:ExampleDP_Arg1.", "System1:ExampleDP_Arg2.");
  err = getLastError();
  if(dynlen(err) > 0)
  {
    DebugN("An error occurred:", err);
    int errC = throwError(err); //write an error message to the PVSS_II.log log file
  }
  else
    DebugN("Function executed:", i);
}

add(string dp1, float a, string dp2, float b)
{
  dpSet("System1:ExampleDP_Result.", a + b);
}

Calculate C = A+B. The name of the callback function is add(). The parameters passed are"Pipe_A.flow:_online.._value" and "Pipe_B.flow:_online.._value". The data point Pipe_C.flow is set via a dpSet() command.

main()
{
  int i;
  i = dpConnect("add", "Pipe_A.flow","Pipe_B.flow");
  DebugN("Function executed:", i);
}

add(string dp1, float a, string dp2, float b)
{
  dpSet("Pipe_C.flow", a + b);
}

In the last example the attribute identifiers _online.._value and _original.._value were left out (for example, "Pipe_B.flow:_online.._value"). If only the data point element is named the original value is automatically used for "set" operations and the online value for "read" operations.

A measured value that is displayed in the system via the data point element Drive014.speed should be visualized in a process image (panel). The value (display) should be formatted (decimal places) and the unit should be specified in a text field.

Solution

Add the following program to the Initialize script of the text field. The function dpValToString() formats the value according to the number format and engineer unit specified for the data point element. The option specified as comment would display the number without formatting and with an arbitrary number of decimal places in the text field.

main()
{
  int i;
  i = dpConnect("displayValue","Drive014.speed");
  DebugN("Function executed:", i);
}

displayValue(string dpe, float speed)
{
  this.text = dpValToString(dpe, speed, true);
}

Information about a drive should be shown in a device symbol. The data point type of the drive looks as follows:

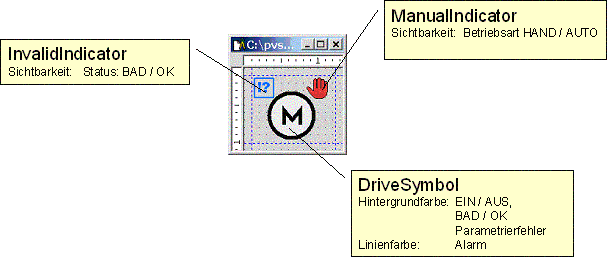

The symbol should visualize the information On/Off (Drive014.speed > 0) and operational mode Hand Drive014.manual= TRUE). Furthermore the current message status color of alert handling on Drive014.fault should be shown in case of errors. Also the quality information (status: invalid, bad) of the actual .speed value is analyzed and displayed in the symbol.

Solution

Write the following program in the Initialize script of the drive symbol. The dpConnect() within the if query is executed first anyway. If the dpConnect cannot be executed (for example, configuration error: the data points do not exist at all) the symbol shows this via a color change (named color "_dpdoesnotexist"). This way erroneous and incomplete configurations are detected immediately.

dpConnect() executes two registrations for two online values, a virtual quality bit and the (in each case) valid color of the current alert range of a data point element. After evaluating which combination of On/Off is available at which status (quality information) all necessary graphics attributes are set at once. This prevents the flickering of display also when there is a large number of objects.

main()
{
  if (dpConnect("visualizeDrive", "Drive014.speed", "Drive014.speed:_online.._bad", "Drive014.fault:_alert_hdl.._act_state_color", /* color of the alert handling */ "Drive014.manual") == -1)
    setValue("","backCol","_dpdoesnotexist");
    // this.backCol = "_dpedoesnotexist";
}

visualizeDrive( string dpe1, float speed, string dpe2, bool invalid, string dpe3, string alertCol, string dpe4, bool manmode)
{
  string symbolCol;
  if (speed > 0)
  {
    if (invalid)
      symbolCol = "STD_device_on_invalid"; /* create this color using the color editor or use some of the default colors like "STD_value_invalid" */
    else
      symbolCol = "STD_device_on"; //default color
  }
  else
  {
    if (invalid)
      symbolCol = "STD_device_off_invalid"; /* create this color using the color editor or use some of the default colors like "STD_value_invalid" */
    else
      symbolCol = "STD_device_off";
  }

  setMultiValue("DriveSymbol", "backCol", symbolCol, "DriveSymbol", "foreCol", alertCol, "InvalidIndicator", "visible", invalid, "ManualIndicator", "visible", manmode);
}

• In the last example the data point identifier was specified absolute. If you would like to use the symbol more than once you would of course use $ parameters (a real reference).
• A function iRet =dpConnect("me_Rahmen_Messung_setBackColor", $dpe+".Messwert.value:_alert_hdl.._act_state_color", $dpe+".Properties.Typ:_original.._value"); is not called if there is no alert handling available on the data point. The value 0 (function executed successfully) is, however, returned. In case of a redundancy switch the function is called but the return value of _act_state_color is an empty string. Additionally, the return value for Properties.Typ is 0 and not the value from the database.
• Normally it is never necessary to execute a dpGet for single elements in the callback function ("work function") since the registration returns these when values change. You may, however, have to access the description texts, format and unit within the function. Since this a quick memory access the processing speed is not affected.

All set point changes of the drive, that was shown in the last example should be logged in the LogViewer during a test run. In addition to the actual value the time stamp, the user that changed the value (ID and user name) and the quality information "INVALID"; have to be printed.

Solution

The registration on the necessary attributes of the data point element can be executed via a single dpConnect(). Although also , for example, the source time (_stime) and maybe the user change when the value changes the callback function logSP is called only once in this case (each value change generates only a single row, see result). The attributes passed via the parameters of the callback function are formatted before printed via DebugN(). The last row of the command DebugN checks (via a condition operator) if the invalid attribute is set. The DebugN is only executed if the invalid attribute is set.

main()
{
 dpConnect("logSP", "Drive014.cmd.setpoint",
"Drive014.cmd.setpoint:_online.._stime", "Drive014.cmd.setpoint:_online.._user", "Drive014.cmd.setpoint:_online.._manager", "Drive014.cmd.setpoint:_online.._invalid");
}
logSP( string dpe1, float setpoint,
 string dpe2, time stime,
 string dpe3, int uid,
 string dpe4, int manNum,
 string dpe5, bool invalid)
{
 string valStr, managerString;
 sprintf(valStr, "%5.2f", setpoint); // formatting of the value
 convManIntToName(manNum, managerString); /* extraction of the manager identifier*/
 DebugN( formatTime("%c", stime, ",%03d") + " | " +
 "SP: " + valStr + " | " +
 getUserName(uid) + " " +
 "on " + managerString + " | " +
 (invalid?"Invalid!":""));
 }

Result

["04.11.2003 16:56:48,629 | SP: 1250.00 | root on UI -num 2 | "]
["04.11.2003 16:57:08,638 | SP: 1500.00 | John Q. Public on UI -num 1 | "]
["04.11.2003 16:57:13,024 | SP: 1520.00 | John Q. Public on UI -num 1 | "]
["04.11.2003 16:57:21,556 | SP: 1200.00 | root on UI -num 2 | "]
["04.11.2003 16:57:34,545 | SP: 1190.00 | John Q. Public on UI -num 1 | "]
["04.11.2003 16:57:58,479 | SP: -5.00 | root on UI -num 2 | Invalid!"]

Examples for correct and incorrect addressing of data point elements

ret = dpConnect("ReportEvent1", TRUE, "TestReport"); //this call reports ret=0 which is success, but the callback fails
ret = dpConnect("ReportEvent1", TRUE, "TestReport."); //this call also reports ret=0 and the callback works
ret = dpConnect("ReportEvent1", TRUE, "TestReport:_online.._value"); //this call fails ret=-1 and the script "dies"
ret = dpConnect("ReportEvent1", TRUE, "TestReport.:_online.._value"); //this call also works fine and the callback works

This example uses a Control++ class and an object of a Control++ class to output values that are set for specific data points via the PARA module. The scope lib of a panel contains the class DpCon and the work function that outputs the values set for specific data points via PARA. The data points are specified via dpConnect().

ScopeLib of a panel:

class DpCon
{
  public void work(dyn_string dp, dyn_float value)
  {
    DebugTN(value);
  }
};

DpCon dpCon;

Below you see a code for e.g. a button. In the code dpConnect uses the object dpCon of the class DpCon and the function pointer dpCon.work that points to the work (callback) function. dpConnect connects to the data points ExampleDP_Arg1. and ExampleDP_Arg2. The values set to the data points are output via the class DpCon and the DebugTN() of the work function.

void main(mapping event)
{
  dyn_string dpList = makeDynString("ExampleDP_Arg1.", "ExampleDP_Arg2.");
  dpConnect(dpCon, dpCon.work, TRUE, dpList);
}

The example outputs the values set to the data points ExampleDP_Arg1. and ExampleDP_Arg2. via PARA, e.g.:

WCCOAui1:2017.07.11 15:43:11.695[dyn_float 2 items
WCCOAui1: 1: 80
WCCOAui1: 2: 100
WCCOAui1:]
