"bubbleMinSize"

Defines the minimum size of a bubble in pixel.

Synopsis

void shape.bubbleMinSize(unsigned pixel)

Parameters


Parameter	Description
pixel	minimum size of a bubble in pixel

Description

Defines the minimum size of a bubble in pixel.

Example

The minimum size of the bubbles was set to 10 pixel.

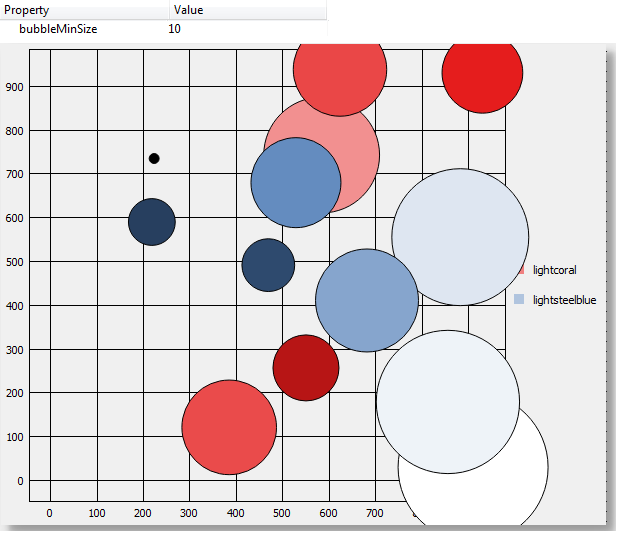

Figure 1. Bubble-chart with a minimum size of 10 pixel

Assignment

Chart.ewo
