"legendPosition"

Desfines the position of the legend.

Synopsis

void shape.legendPosition(string position);

Parameter


Parameter	Description
position	"Left", "Right", "Top", "Bottom", "None"

Description

Desfines the position of the legend. "Left", "Right", "Top", "Bottom" or "None" can be defined.

Example

In this example the position of the legend was set to "Top".

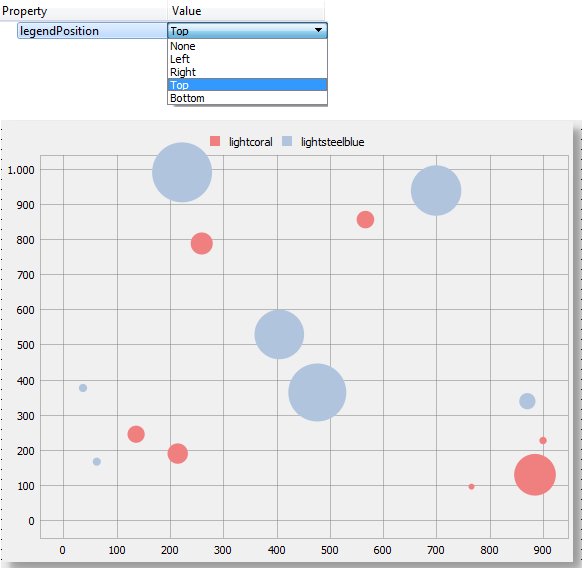

Figure 1. Bubble-chart with the legend on top of the chart

Assignment

Chart.ewo
