Alarm Archiving

Alarm archiving in WinCC OA is currently activated in the alert class (_alert_class). It cannot be activated independently by using the alert handling config (_alert_hdl).

Currently (NGA V2.0) there is no archive class assignment possible yet. Therefore, (similar to RDB manager) all alert history is saved in one archive group called “ALERT”.

Note: Active alerts are archived at the start of the NGA. In other words a synchronization between the already archived alerts and the active alerts takes place.

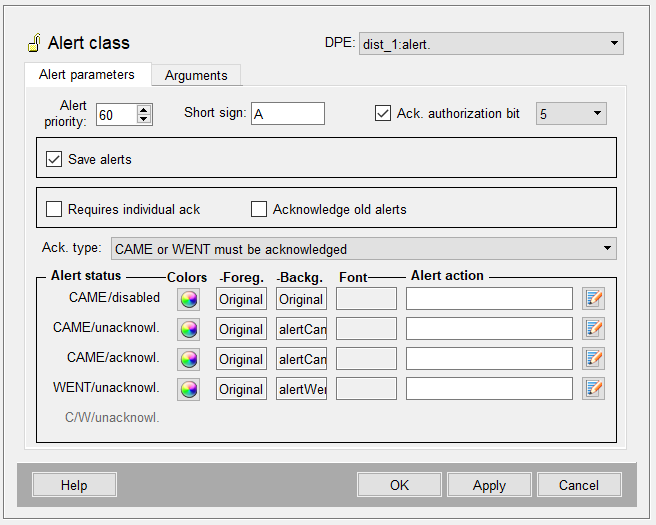

The Save alerts check box defines whether all alarms using this alarm class are archived or not. This is identical to the configuration used for Value Archive / RAIMA and RDB manager.
