BACnet_Command

The Command object type defines a standardized object whose properties represent the externally visible characteristics of a multi-action command procedure. This object is used to write a set of values to a group of object properties, based on the "action code" that is written to the Present_Value of the Command object. Whenever the Present_Value property of the Command object is written to, it triggers the Command object to take a set of actions that change the values of a set of other objects' properties. Typically the object is used to represent a complex context involving multiple variables.

Datenpunkttypname

BACnet_Command

(Objekt-/)Datenpunkttypstruktur

Faceplate

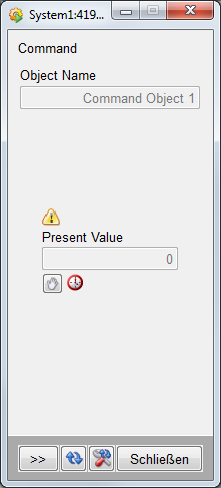

Abbildung 1. Faceplate zu "Command"

Allgemeine Informationen zum Faceplate bekommen Sie unter Symbole und Registerkarten eines Faceplates oder in der separaten Dokumentation zur Standardobjektbibliothek (<wincc_oa_path>\Stdlib_<Version>\help).
