Redundant Overview

Note: This tab is only available for redundant projects.
  • When Backend is in-proc, the connection line from NGA manager to backend is always grey.
  • When backend is out-of-proc, the connection line is green when a connection is established and red if there is no connection between the NGA manager and the backend.
  • When there is no connection between the projects of a redundant project, the elements of the unreachable project will be hidden (their state is not known).
  • For Buffers, see chapter Buffering Parameters.

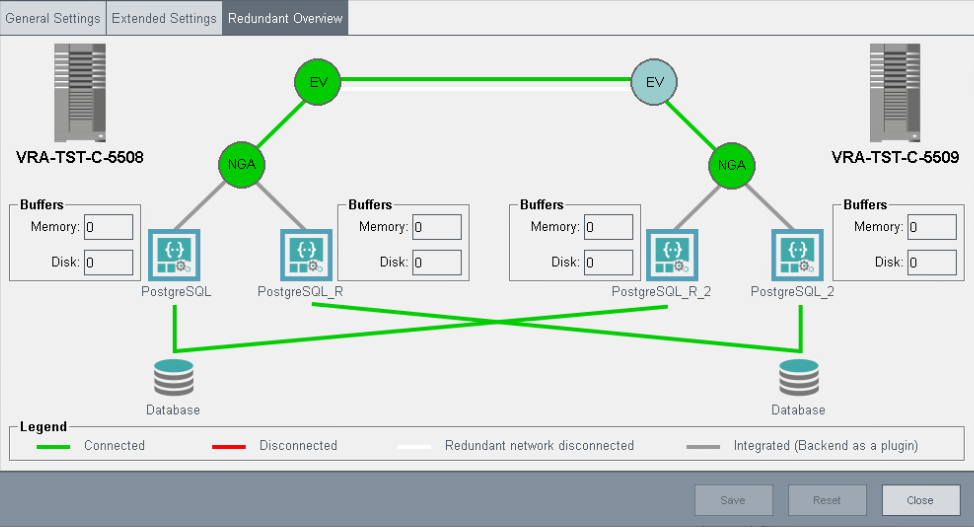

Figure 1. Example of Redundancy with PostgreSQL® Dual Databases

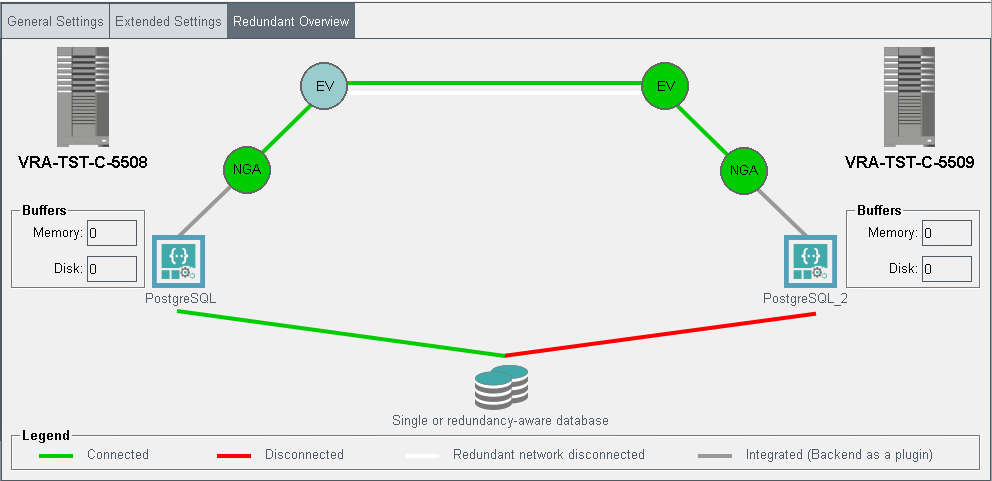

Figure 2. Redundant Overview - Connection to the VRA-TST-C-5508

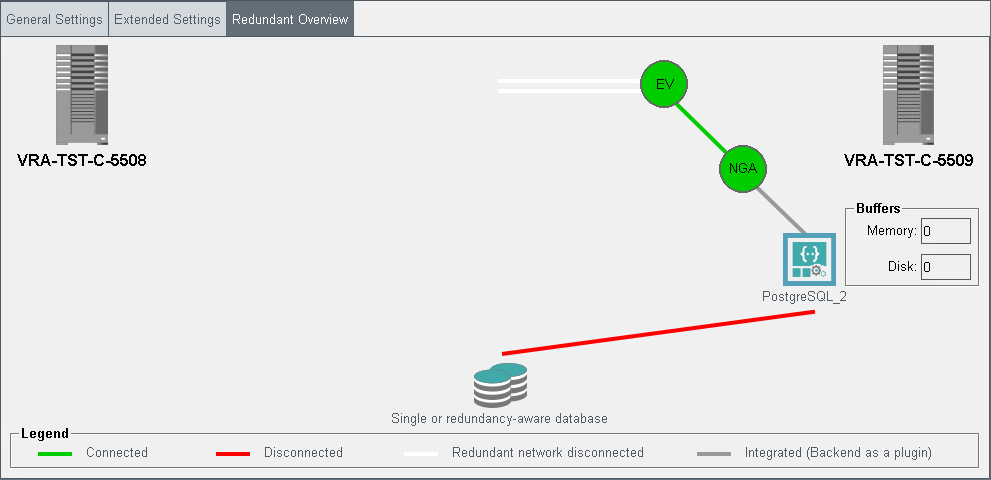

Figure 3. Redundant Overview - No connection to the VRA-TST-C-5509
