"areaLabel"

The trend attribute "areaLabel" can be used to define a text that is shown above or next to the scale, depending on the orientation of the trend.

Synopsis

setValue(string shape, "areaLabel", int area, string text);

getValue(string shape, "areaLabel", int area, string text);

shape.areaLabel(int area, string text);

Parameter

Parameter Description
area Trend area. The index starts with 0.
text Text that is shown for a trend.

Description

The trend attribute "areaLabel" can be used to define a text that is shown on the left of a horizontally oriented trend or above the scale for vertically oriented trends.

Example

Sets a text for area 1.

main()
{
  TREND1.areaLabel(0, "Text for area 1");
}

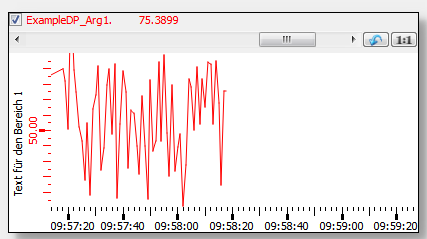

Abbildung 1. Text for the area1

Assignment

Trend
