"curveScaleBackCol"

Sets the background color for the scale area of a trend.

Synopsis

setValue(string shape, "curveScaleBackCol", string Name, string color);

getValue(string shape, "curveScaleBackCol", string Name, string &color);

shape.curveScaleBackCol(string Name, string color);

Parameters

Parameter Description
shape Name of the object (for example, Trend1)
Name Name of the curve whose background color should be set (for example, c1)
color Background color for the scale

Description

Sets the background color of the scale of the y axis for an arbitrary trend curve. The function can only be used with trends of type value over time. With trends of type value over value an appropriate error message is shown in the log viewer. By default, color=="{0,0,0}".

Example

main()
{
  TREND1.curveScaleBackCol("#1_1", "blue");
  TREND1.curveScaleBackCol("#2_1", "green");
}

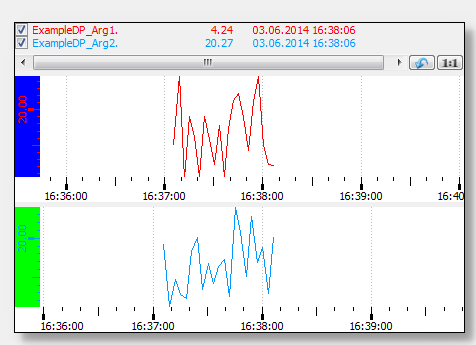

Abbildung 1. The Background Color of the Scales was set

Assignment

Trend
