"showBackgroundGrid"

This attribute shows the grid lines of a trend in the background or in the foreground.

Synopsis

setValue(string shape, "showBackgroundGrid", bool state);

getValue(string shape, "showBackgroundGrid", bool state);

shape.showBackgroundGrid(bool state);

Parameter

Parameter Description
shape Object name
state

TRUE = The grid lines are shown in the background.

FALSE = The grid lines are shown in the foreground.

Description

This attribute shows the grid lines of a trend in the background or in the foreground.

Per default the grid is shown in the background of a curve. With the aid of this attribute or the trend editor the grid can be shown in the foreground. This is meaningful when the area between curve and reference line is filled in (see "fill" - Curve).

You have to set the grid lines to visible first. You can do it with the attribute TREND1.showGrid(1); or through the trend editor.

Example

The following example sets the grid lines to visible and the mode to "background" (showBackgroundGrid(TRUE) ).

main()
{
  TREND1.showGrid(1);
  TREND1.showBackgroundGrid(TRUE);
}

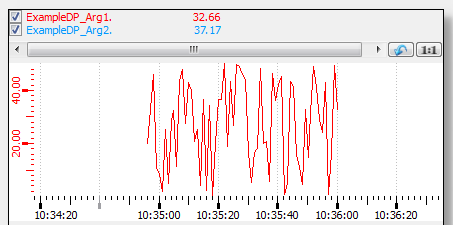

Abbildung 1. Image: The Grid Lines were set to visible for the Trend

Assignment

Trend
