"curveFillColor"

With the trend attribute "curveFillColor" you can set the fill color of a trend curve.

Synopsis

setValue(string shape,"curveFillColor", string curve, string color);

getValue(string shape,"curveFillColor", string curve, string color);

shape.curveFillColor(string curve, string color);

Parameter

Parameter Description
curve The trend curve the fill color is set for.
color The fill color that is set.

Description

With the trend attribute "curveFillColor" you can set the fill color of a trend curve. The color is only set if the curve fill type is set via the attribute "curveFillType" to another type than "[outline]". You can, for example, set two different colors for the curve and fill colors when using the fill types "Solid" and "Hatch". You can also use a half transparent fill color.

Example

This example sets the fill type as well as the fill color of a trend curve to the selected fill type and specified fill color. The fill type selector is opened (see fileSelector()). The fill color is set to (255,255,0,57).

main()
{
  string ft;
  fillSelector(ft);
  TREND1.curveFillType("#1_1", ft);
  TREND1.curveFillColor("#1_1","{255,255,0,57}");
}

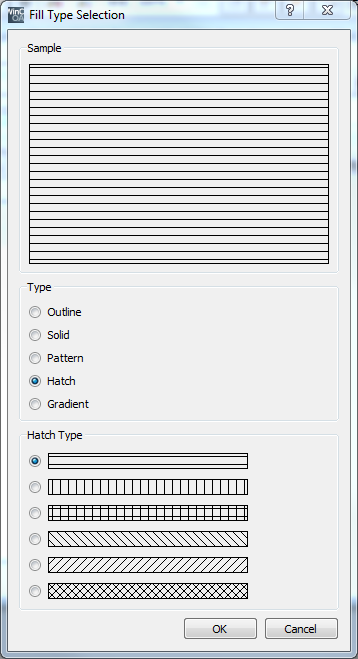

Abbildung 1. Fill type Selection

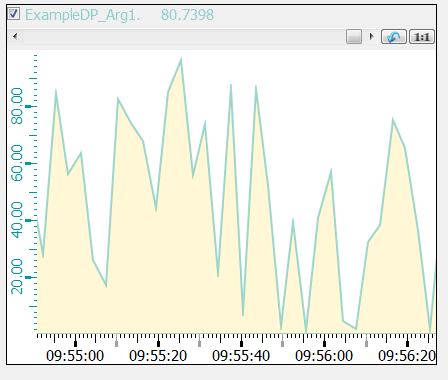

Abbildung 2. A Trend curve and the fill type "Solid" as well as two different colors for the curve and fill colors

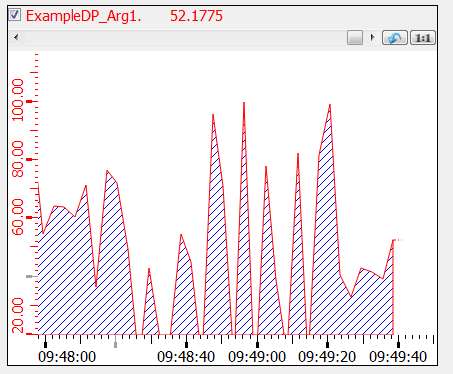

Abbildung 3. A Trend curve and the fill type "Hatch" as well as two different colors for the curve and fill colors

Assignment

Trend
