"curveRulers", "curveRulersX"

The attribute "curveRulers" or "curveRulersX" shows interactive value based rulers for a trend curve.

Synopsis

setValue(string shape, "curveRulers", string curve, dyn_float values);

getValue(string shape, "curveRulers", string curve, dyn_float values);

shape.curveRulers(string curve, dyn_float values);

setValue(string shape, "curveRulersX", string curve, dyn_float values);

getValue(string shape, "curveRulersX", string curve, dyn_float values);

shape.curveRulersX(string curve, dyn_float values);

Parameter

Parameter Description
curve The name of the trend curve.
values The values that are set for a ruler.

Description

The attribute "curveRulers" shows interactive value based rulers for a trend curve.

When you move the cursor in a trend over a crossover point between the curve and the ruler, a tooltip with information on the next point of the curve is shown.

To use this function, set the config entry "trendEnableCurveRulers" in the [ui] section of the config file.

Via the attribute "maxRulerCount" you can specify how many rulers can be used for a trend area.

Example

In the following example a ruler is set for a trend curve at the position current time - 60 seconds.

main()
{
  int num = TREND1.numTrendAreas;
  dyn_time t = getCurrentTime() - 60; //returns the current time -60 seconds
  dyn_float f;
  dyn_string dsName;
  for (int i = 0; i < num; i++)
 {
   TREND1.rulerTimes(i,t);
   DebugN("Times", t);
   getValue("TREND1","curveNames",i,dsName); //returns the curve names
   for (int k=1; k<=dynlen(dsName);k++)
  {
    TREND1.curveRulers(dsName[k],f); //sets the curve rulers
    DebugN(dsName[k]);
  }
 }
}

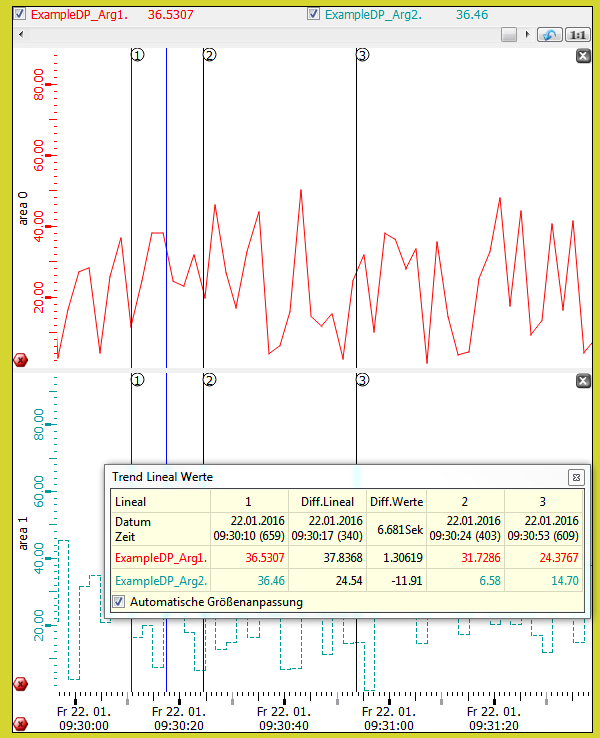

A differential ruler can be shown for a curve via pressed shift key. The differential ruler is shown when at least one vertical ruler exists. A differential ruler shows the deviation from the first ruler. Note that the differential ruler is only shown for the first vertical lineal. See figure below:

Abbildung 1. Trend and differential lineal
